Product advantages

• CNCYG series door-type precision plasma cutting machine compared with conventional plasma cutting, suitable for cutting surface verticality, finish, precision more stringent processing environment.

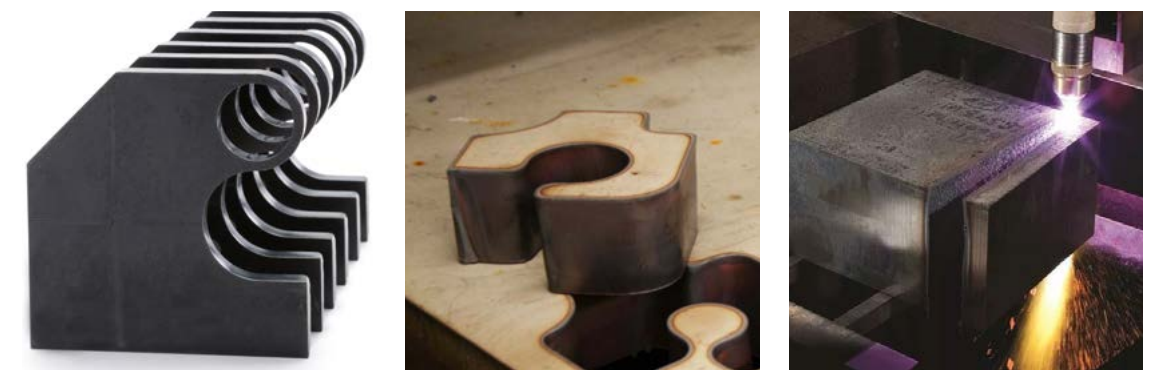

• The equipment is suitable for high-quality cutting of stainless steel, carbon steel and non-ferrous metals with a thickness of 1-5 0mm. This model can be configured with water bed for underwater or shallow water surface cutting, which can greatly reduce the environmental pollution such as smoke, arc light, harmful gas and noise generated by plasma cutting, and has good environmental protection effect. Dry dust removal and purification equipment can also be selected.

Application areas

Sheet metal processing, mechanical engineering, construction steel structure, pressure vessel, machinery manufacturing, petrochemical industry, environmental protection equipment, shipbuilding industry, automobile manufacturing, coal machinery equipment, tower crane, bridge template, etc.

Technical parameters

Optional items

Plasma rotary groove cutting

flame rotating three-cut flame

flame straight strip cutting

drilling and cutting

industrial dust removal

User-owned scope

1. Power supply and distribution box;
2. Production of plasma grounding power grid;
3. Cutting working platform;
4. Dust removal device and dust removal air duct (optional);
5. I-beam bolster (or cement bolster);
6. Foundation of bolting beam: bolt embedment and cement grouting;
7. Longitudinal drag chain support or suspension bracket;
8. Gas source supply and pipeline configuration, plasma cutting need to configure gas filter device;
* For the above part, the drawings shall be provided by Yonggu, and the user shall be responsible for the construction.
