CNC small diameter intersecting line cutting machine
Classification:
Product Details
Product advantages
In view of the demand for small diameter pipe cutting, the company has specially developed a small diameter numerical control intersecting line cutting machine on the basis of designing and manufacturing numerical control intersecting line cutting equipment for many years. This machine is suitable for high-efficiency and high-precision intersecting line cutting and fixed-length cutting of small diameter pipe between 40mm and 300mm, thus solving the difficult problem that small diameter steel pipe is not easy to cut.
Technical parameters
| Model | CNCPG |
| Scope of application of pipe (outer diameter) | φ40-300mm; |
| Pipe length | 4 -16 m according to customer requirements |
| Maximum load | 5T |
| Applicable cutting thickness | Flame 5-50mm, plasma cutting thickness according to plasma power supply model |
| Number of CNC axes | 2/3/4/5/6 axis or extension |
| X-axis-workpiece rotation | Workpiece rotation drive; amount of rotation: free rotation |
| Y axis-trolley movement | The torch moves axially along the pipe; the amount of movement: according to the effective cutting length of the equipment |
| Z-axis-longitudinal lifting of cutting torch | The torch moves longitudinally according to the pipe diameter; The amount of movement: according to the diameter of the workpiece |
| U-axis-axial deflection of torch | Torch deflection along workpiece axis; deflection angle: flame ± 60 °, plasma ± 45 ° |
| V-axis-torch radial runout | Torch deflection along the radial direction of the workpiece; deflection angle: flame ± 60 °, plasma ± 45 ° |
| W axis-chuck lifting | Chuck longitudinal lifting; movement: according to the workpiece diameter (manual) |
| Additional Axis-Ovality Adjustment | The cutting torch automatically adjusts the height of the lifting shaft according to the ovality of the workpiece; adjustment amount: 0-20mm |
Application areas
Electric power water conservancy, petrochemical industry, building structure, shipbuilding heavy industry, metallurgical machinery, etc.

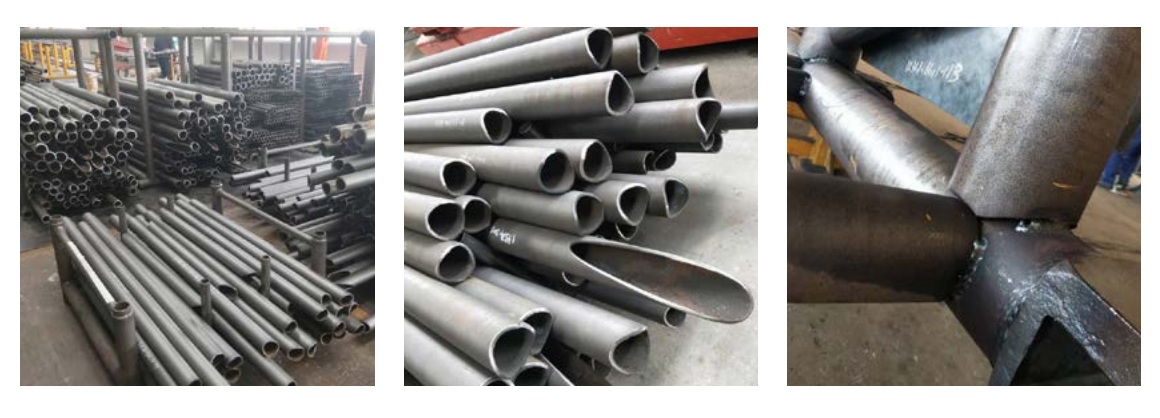

Cutting process
